Graphene was initial discovered experimentally in 2004, bringing intend to the growth of high-performance electronic devices. Graphene is a two-dimensional crystal made up of a single layer of carbon atoms organized in a honeycomb form. It has an unique electronic band framework and outstanding digital properties. The electrons in graphene are massless Dirac fermions, which can shuttle bus at incredibly fast speeds. The service provider wheelchair of graphene can be greater than 100 times that of silicon. “Carbon-based nanoelectronics” based on graphene is expected to usher in a brand-new era of human details society.

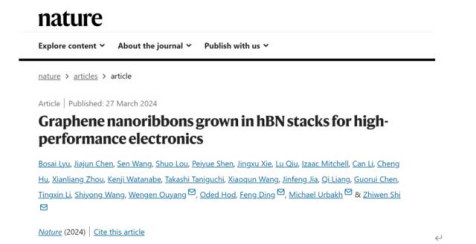

(Graphene nanoribbons grown in hBN stacks for high-performance electronics on “Nature”)

However, two-dimensional graphene has no band gap and can not be straight made use of to make transistor devices.

Academic physicists have recommended that band gaps can be presented with quantum confinement impacts by cutting two-dimensional graphene right into quasi-one-dimensional nanostrips. The band space of graphene nanoribbons is inversely symmetrical to its size. Graphene nanoribbons with a width of less than 5 nanometers have a band space similar to silicon and appropriate for making transistors. This sort of graphene nanoribbon with both band space and ultra-high flexibility is just one of the optimal prospects for carbon-based nanoelectronics.

Consequently, scientific scientists have actually spent a great deal of power in examining the preparation of graphene nanoribbons. Although a selection of techniques for preparing graphene nanoribbons have actually been developed, the issue of preparing high-grade graphene nanoribbons that can be utilized in semiconductor devices has yet to be resolved. The provider wheelchair of the ready graphene nanoribbons is far lower than the theoretical worths. On the one hand, this distinction comes from the poor quality of the graphene nanoribbons themselves; on the various other hand, it originates from the problem of the setting around the nanoribbons. Due to the low-dimensional properties of the graphene nanoribbons, all its electrons are exposed to the exterior setting. Therefore, the electron’s motion is extremely quickly influenced by the surrounding environment.

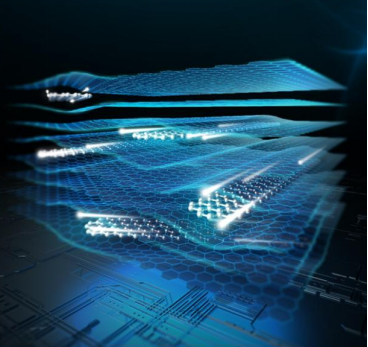

(Concept diagram of carbon-based chip based on encapsulated graphene nanoribbons)

In order to improve the efficiency of graphene gadgets, numerous techniques have actually been tried to reduce the condition results caused by the atmosphere. One of the most effective technique to date is the hexagonal boron nitride (hBN, hereafter described as boron nitride) encapsulation technique. Boron nitride is a wide-bandgap two-dimensional split insulator with a honeycomb-like hexagonal lattice-like graphene. Much more notably, boron nitride has an atomically flat surface area and superb chemical stability. If graphene is sandwiched (enveloped) in between 2 layers of boron nitride crystals to create a sandwich structure, the graphene “sandwich” will be separated from “water, oxygen, and microbes” in the complicated external atmosphere, making the “sandwich” Constantly in the “highest quality and freshest” problem. Numerous researches have actually shown that after graphene is encapsulated with boron nitride, several homes, consisting of service provider mobility, will be significantly boosted. However, the existing mechanical product packaging approaches could be more efficient. They can presently only be used in the field of scientific research, making it tough to satisfy the demands of massive production in the future innovative microelectronics market.

In response to the above challenges, the group of Professor Shi Zhiwen of Shanghai Jiao Tong University took a new method. It created a new preparation method to achieve the ingrained growth of graphene nanoribbons between boron nitride layers, forming a distinct “in-situ encapsulation” semiconductor residential property. Graphene nanoribbons.

The growth of interlayer graphene nanoribbons is accomplished by nanoparticle-catalyzed chemical vapor deposition (CVD). “In 2022, we reported ultra-long graphene nanoribbons with nanoribbon lengths up to 10 microns grown on the surface of boron nitride, but the length of interlayer nanoribbons has actually much surpassed this document. Currently limiting graphene nanoribbons The ceiling of the size is no more the growth mechanism however the dimension of the boron nitride crystal.” Dr. Lu Bosai, the very first author of the paper, stated that the length of graphene nanoribbons expanded between layers can get to the sub-millimeter degree, far exceeding what has actually been previously reported. Outcome.


“This sort of interlayer embedded development is amazing.” Shi Zhiwen said that material growth generally involves growing another on the surface of one base material, while the nanoribbons prepared by his research study group expand straight on the surface of hexagonal nitride in between boron atoms.

The previously mentioned joint study team functioned carefully to disclose the development device and found that the development of ultra-long zigzag nanoribbons between layers is the result of the super-lubricating residential or commercial properties (near-zero friction loss) in between boron nitride layers.

Experimental monitorings reveal that the growth of graphene nanoribbons only occurs at the bits of the stimulant, and the placement of the driver remains unmodified throughout the process. This shows that the end of the nanoribbon applies a pushing pressure on the graphene nanoribbon, causing the entire nanoribbon to get over the friction in between it and the surrounding boron nitride and continuously slide, creating the head end to move far from the stimulant fragments gradually. Consequently, the researchers hypothesize that the rubbing the graphene nanoribbons experience should be really little as they move in between layers of boron nitride atoms.

Since the grown graphene nanoribbons are “enveloped sitting” by insulating boron nitride and are secured from adsorption, oxidation, environmental pollution, and photoresist contact throughout tool processing, ultra-high efficiency nanoribbon electronics can in theory be obtained device. The scientists prepared field-effect transistor (FET) tools based on interlayer-grown nanoribbons. The measurement results revealed that graphene nanoribbon FETs all exhibited the electric transport characteristics of common semiconductor devices. What is more noteworthy is that the tool has a carrier mobility of 4,600 cm2V– ones– 1, which exceeds formerly reported outcomes.

These outstanding properties suggest that interlayer graphene nanoribbons are expected to play an essential role in future high-performance carbon-based nanoelectronic tools. The research study takes a key action toward the atomic manufacture of sophisticated packaging styles in microelectronics and is expected to impact the field of carbon-based nanoelectronics significantly.
