With the rapid development of power electronics technology, Capsule Type Thyristor is increasingly used in various power electronic equipment. However, as a critical semiconductor device, the correct use and protection of Capsule Type Thyristor is crucial to the stability and reliability of the device. This article will detail the structure, working principle, characteristics, and advantages of the capsule-type thyristor, its application in power electronics, driving methods, and issues that need attention during use.

Structure and working principle of Capsule Type Thyristor

A type Thyristor is a device that encapsulates a thyristor and consists of four layers (P-N-P-N) of semiconductor material with three electrodes: anode (A), cathode (K), and control electrode (G). Its working principle is similar to that of an ordinary thyristor. Under the action of forward voltage, the Capsule Type Thyristor is in a blocking state. The A-pole potential is higher than the K-pole potential, and the minority carriers in the PN junction area cannot flow, thus realizing the current shutdown. When a forward trigger voltage is applied to the control electrode, the minority carriers in the PNP junction area increase, triggering the Capsule Type Thyristor to turn on.

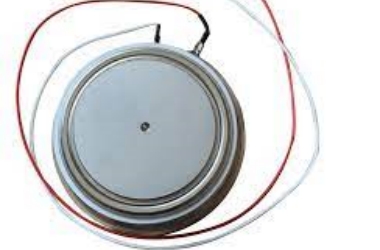

(the Capsule Type Thyristor)

Capsule Type Thyristor Features and Benefits

  1. Small size, compact structure, and easy to install.
  2. Packaging technology improves the reliability and service life of thyristors.
  3. Highly efficient performance under large current and high voltage.
  4. Quick response, enabling high-frequency operation.
  5. High surge current withstanding capability, suitable for high load applications.

Application of Capsule Type Thyristor in Power Electronics

  1. Power transmission: used to stabilize and improve power quality.
  2. Electric locomotive: used for quick start and speed control of traction motor.
  3. Power system: used to control and protect power systems, such as reactive power compensation, DC transmission, etc.
  4. Industrial control: used for motor control and power management of various industrial equipment.
  5. New energy field: used for power control and optimization of new power generation systems such as solar and wind energy.

How to drive Capsule Type Thyristor

Different driving methods can be used according to different application scenarios and requirements. Generally speaking, for low-power circuits, the pulse-triggered driving method can be used; for high-power, high-precision circuits, the analog-controlled driving method can be used; for complex functions, the digital-controlled driving method can be used. No matter which driving method is used, it is necessary to ensure that appropriate trigger pulses are provided to ensure that the Capsule Type Thyristor can turn on and off correctly when needed.

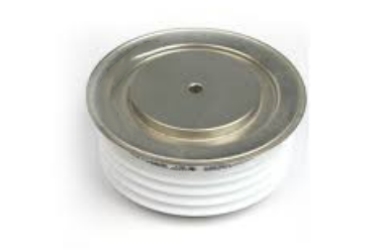

(the Capsule Type Thyristor)

Precautions for using Capsule Type Thyristor

  1. Overvoltage protection: In order to prevent overvoltage from causing damage to the Capsule Type Thyristor, protective devices such as varistor and TVS tube should be added to the circuit. These protection devices can quickly turn on when the voltage is too high, limiting the voltage to a safe range.
  2. Overcurrent protection: In order to prevent overcurrent from causing damage to the Capsule Type Thyristor, protection circuits such as fast fuses and current transformers should be added to the circuit. When the current exceeds the set value, the protection circuit will act quickly to cut off the circuit or send an alarm signal.
  3. Temperature protection: High temperatures can have a negative impact on the reliability and performance of the Capsule Type Thyristor. Therefore, appropriate heat dissipation measures should be taken, such as installing a radiator or fan to reduce the device’s operating temperature. At the same time, a temperature sensor and a protection circuit can be added to the circuit to automatically cut off the power supply or send an alarm signal when the temperature exceeds the set value.
  4. Under-voltage protection: In order to prevent under-voltage from causing damage to the Capsule Type Thyristor, protection devices such as zener diodes and linear regulators should be added to the circuit. These protection devices can provide stable voltage output when too low, ensuring the normal operation of the Capsule Type Thyristor.
  5. Fast shutdown protection: In some applications, the Capsule Type Thyristor needs to be shut down quickly to protect circuit and system safety. At this time, trigger devices such as MOSFET should be used to achieve fast turn-off. When the Capsule Type Thyristor needs to be turned off, the trigger device will quickly trigger the thyristor’s turn-off process.

As an important power electronic device, the Capsule Type Thyristor plays an important role in power transmission, electric locomotives, power systems, and other fields. Understanding its structure, working principle, features, advantages, and applications in power electronics, driving methods, and usage precautions are crucial for the correct use and protection of this device. By taking appropriate protective measures and paying attention to usage details, the service life of the Capsule Type Thyristor can be extended, and the reliability and stability of the device can be improved. With the continuous development of power electronics technology, we look forward to more innovation and technological advancements to bring more efficient and reliable performance to power electronic equipment.

Supplier

PDDN Photoelectron Technology Co., Ltd. is a high-tech enterprise focusing on the manufacturing, R&D, and sales of power semiconductor devices. Since its establishment, the company has been committed to providing high-quality, high-performance semiconductor products to customers worldwide to meet the needs of the evolving power electronics industry.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you are looking for high-quality the Capsule Type Thyristor, please feel free to send us inquiries, and we will be here to help you.
