1. Product Structures and Synergistic Style
1.1 Intrinsic Properties of Constituent Phases

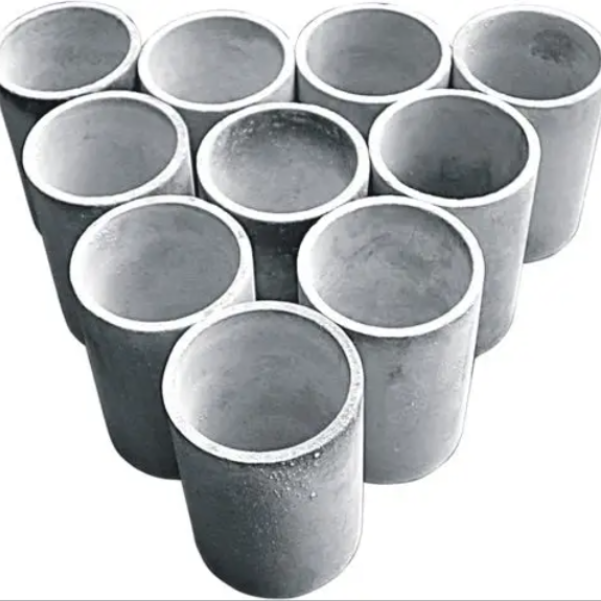

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si three N ₄) and silicon carbide (SiC) are both covalently bonded, non-oxide porcelains renowned for their exceptional performance in high-temperature, destructive, and mechanically requiring atmospheres.
Silicon nitride exhibits superior crack sturdiness, thermal shock resistance, and creep stability because of its unique microstructure made up of lengthened β-Si six N four grains that make it possible for crack deflection and bridging systems.
It preserves toughness as much as 1400 ° C and has a relatively low thermal expansion coefficient (~ 3.2 × 10 ⁻⁶/ K), decreasing thermal tensions during quick temperature level modifications.
In contrast, silicon carbide uses premium hardness, thermal conductivity (up to 120– 150 W/(m · K )for single crystals), oxidation resistance, and chemical inertness, making it ideal for unpleasant and radiative warmth dissipation applications.
Its vast bandgap (~ 3.3 eV for 4H-SiC) also provides excellent electrical insulation and radiation tolerance, beneficial in nuclear and semiconductor contexts.
When combined into a composite, these products show corresponding habits: Si six N four boosts sturdiness and damages tolerance, while SiC boosts thermal administration and wear resistance.
The resulting hybrid ceramic attains a balance unattainable by either stage alone, creating a high-performance architectural material tailored for extreme solution problems.
1.2 Compound Architecture and Microstructural Design
The layout of Si six N ₄– SiC composites entails accurate control over phase circulation, grain morphology, and interfacial bonding to optimize collaborating impacts.
Normally, SiC is introduced as great particulate support (ranging from submicron to 1 µm) within a Si ₃ N ₄ matrix, although functionally graded or split styles are also explored for specialized applications.
Throughout sintering– typically via gas-pressure sintering (GPS) or warm pushing– SiC particles affect the nucleation and growth kinetics of β-Si four N four grains, often promoting finer and even more uniformly oriented microstructures.
This improvement boosts mechanical homogeneity and decreases flaw dimension, contributing to better strength and integrity.
Interfacial compatibility in between the two phases is important; since both are covalent ceramics with similar crystallographic proportion and thermal growth behavior, they form coherent or semi-coherent borders that resist debonding under tons.
Ingredients such as yttria (Y TWO O THREE) and alumina (Al two O ₃) are utilized as sintering help to promote liquid-phase densification of Si four N ₄ without compromising the security of SiC.
However, extreme secondary stages can break down high-temperature performance, so composition and handling should be maximized to decrease lustrous grain limit films.
2. Processing Strategies and Densification Difficulties

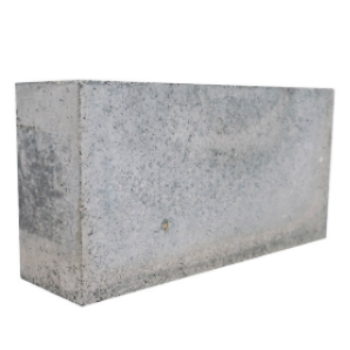

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Approaches
High-grade Si Three N ₄– SiC compounds begin with homogeneous blending of ultrafine, high-purity powders utilizing wet round milling, attrition milling, or ultrasonic dispersion in organic or aqueous media.
Achieving consistent dispersion is vital to stop agglomeration of SiC, which can work as stress and anxiety concentrators and lower fracture durability.
Binders and dispersants are contributed to support suspensions for forming techniques such as slip spreading, tape spreading, or shot molding, relying on the preferred part geometry.
Environment-friendly bodies are after that carefully dried and debound to remove organics before sintering, a process requiring controlled home heating prices to stay clear of breaking or contorting.
For near-net-shape manufacturing, additive strategies like binder jetting or stereolithography are emerging, allowing complicated geometries formerly unreachable with traditional ceramic handling.
These methods need tailored feedstocks with enhanced rheology and eco-friendly stamina, often entailing polymer-derived porcelains or photosensitive materials loaded with composite powders.
2.2 Sintering Mechanisms and Stage Security
Densification of Si Four N ₄– SiC compounds is challenging because of the solid covalent bonding and restricted self-diffusion of nitrogen and carbon at practical temperatures.
Liquid-phase sintering utilizing rare-earth or alkaline earth oxides (e.g., Y TWO O FIVE, MgO) reduces the eutectic temperature and enhances mass transportation through a short-term silicate thaw.
Under gas pressure (typically 1– 10 MPa N TWO), this melt facilitates rearrangement, solution-precipitation, and last densification while reducing disintegration of Si ₃ N FOUR.
The presence of SiC influences thickness and wettability of the liquid stage, potentially modifying grain growth anisotropy and final texture.
Post-sintering warm therapies might be put on crystallize recurring amorphous stages at grain borders, enhancing high-temperature mechanical buildings and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are routinely utilized to validate phase purity, absence of undesirable secondary stages (e.g., Si ₂ N TWO O), and consistent microstructure.
3. Mechanical and Thermal Efficiency Under Tons
3.1 Strength, Sturdiness, and Exhaustion Resistance
Si ₃ N FOUR– SiC composites demonstrate premium mechanical performance compared to monolithic ceramics, with flexural toughness going beyond 800 MPa and crack strength worths reaching 7– 9 MPa · m ONE/ TWO.
The reinforcing impact of SiC fragments restrains dislocation motion and crack breeding, while the extended Si two N four grains continue to give toughening via pull-out and bridging mechanisms.
This dual-toughening technique causes a product very immune to impact, thermal cycling, and mechanical exhaustion– important for turning components and structural aspects in aerospace and energy systems.
Creep resistance continues to be superb approximately 1300 ° C, credited to the security of the covalent network and lessened grain border moving when amorphous phases are decreased.
Solidity values typically range from 16 to 19 GPa, supplying exceptional wear and disintegration resistance in unpleasant environments such as sand-laden flows or moving calls.
3.2 Thermal Monitoring and Ecological Resilience
The enhancement of SiC considerably boosts the thermal conductivity of the composite, often increasing that of pure Si four N FOUR (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) relying on SiC web content and microstructure.
This enhanced warmth transfer ability enables more effective thermal administration in parts subjected to extreme local heating, such as burning liners or plasma-facing components.
The composite keeps dimensional security under high thermal gradients, standing up to spallation and breaking as a result of matched thermal expansion and high thermal shock parameter (R-value).
Oxidation resistance is an additional vital benefit; SiC develops a safety silica (SiO ₂) layer upon exposure to oxygen at elevated temperatures, which even more compresses and secures surface issues.
This passive layer shields both SiC and Si Two N ₄ (which additionally oxidizes to SiO ₂ and N TWO), making certain long-term longevity in air, heavy steam, or burning ambiences.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Power, and Industrial Systems
Si Three N FOUR– SiC compounds are progressively deployed in next-generation gas wind turbines, where they allow greater operating temperature levels, enhanced gas performance, and lowered cooling demands.
Components such as turbine blades, combustor linings, and nozzle overview vanes take advantage of the product’s ability to withstand thermal biking and mechanical loading without considerable degradation.
In nuclear reactors, particularly high-temperature gas-cooled reactors (HTGRs), these composites serve as fuel cladding or architectural supports because of their neutron irradiation resistance and fission product retention capability.
In industrial setups, they are utilized in liquified steel handling, kiln furniture, and wear-resistant nozzles and bearings, where conventional steels would certainly stop working too soon.
Their lightweight nature (thickness ~ 3.2 g/cm THREE) also makes them attractive for aerospace propulsion and hypersonic car elements subject to aerothermal heating.
4.2 Advanced Manufacturing and Multifunctional Combination
Arising research study focuses on creating functionally graded Si ₃ N FOUR– SiC structures, where composition varies spatially to enhance thermal, mechanical, or electromagnetic residential properties across a solitary part.
Crossbreed systems including CMC (ceramic matrix composite) architectures with fiber reinforcement (e.g., SiC_f/ SiC– Si ₃ N FOUR) press the boundaries of damage tolerance and strain-to-failure.
Additive production of these compounds makes it possible for topology-optimized heat exchangers, microreactors, and regenerative cooling channels with inner latticework frameworks unachievable using machining.
Additionally, their fundamental dielectric buildings and thermal stability make them prospects for radar-transparent radomes and antenna home windows in high-speed systems.
As demands grow for materials that do accurately under severe thermomechanical lots, Si four N ₄– SiC compounds represent a crucial advancement in ceramic engineering, merging robustness with performance in a single, lasting platform.
Finally, silicon nitride– silicon carbide composite ceramics exemplify the power of materials-by-design, leveraging the strengths of two innovative ceramics to create a hybrid system efficient in thriving in one of the most serious functional environments.
Their continued advancement will certainly play a main function in advancing tidy energy, aerospace, and commercial modern technologies in the 21st century.
