1. Product Principles and Crystal Chemistry
1.1 Make-up and Polymorphic Structure

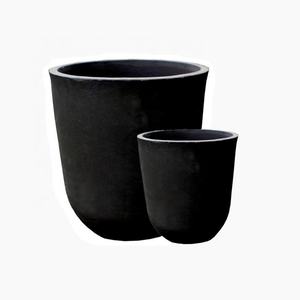

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic compound made up of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its remarkable solidity, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks differing in stacking series– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most highly appropriate.
The solid directional covalent bonds (Si– C bond power ~ 318 kJ/mol) result in a high melting point (~ 2700 ° C), reduced thermal growth (~ 4.0 × 10 ⁻⁶/ K), and superb resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC does not have a native lustrous phase, adding to its security in oxidizing and harsh ambiences as much as 1600 ° C.
Its large bandgap (2.3– 3.3 eV, relying on polytype) likewise grants it with semiconductor properties, enabling twin use in structural and electronic applications.
1.2 Sintering Difficulties and Densification Strategies
Pure SiC is exceptionally difficult to compress as a result of its covalent bonding and low self-diffusion coefficients, necessitating making use of sintering aids or innovative handling techniques.
Reaction-bonded SiC (RB-SiC) is created by infiltrating permeable carbon preforms with molten silicon, developing SiC sitting; this technique yields near-net-shape elements with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon additives to promote densification at ~ 2000– 2200 ° C under inert ambience, attaining > 99% academic thickness and remarkable mechanical residential or commercial properties.
Liquid-phase sintered SiC (LPS-SiC) uses oxide ingredients such as Al Two O SIX– Y ₂ O FOUR, developing a transient fluid that improves diffusion but might decrease high-temperature toughness because of grain-boundary phases.
Warm pressing and trigger plasma sintering (SPS) supply rapid, pressure-assisted densification with great microstructures, perfect for high-performance elements needing marginal grain development.
2. Mechanical and Thermal Performance Characteristics
2.1 Strength, Solidity, and Put On Resistance
Silicon carbide ceramics exhibit Vickers hardness values of 25– 30 GPa, second only to ruby and cubic boron nitride among design materials.
Their flexural stamina usually ranges from 300 to 600 MPa, with fracture sturdiness (K_IC) of 3– 5 MPa · m 1ST/ TWO– modest for porcelains however enhanced via microstructural engineering such as whisker or fiber reinforcement.
The combination of high firmness and elastic modulus (~ 410 Grade point average) makes SiC remarkably resistant to abrasive and erosive wear, surpassing tungsten carbide and hardened steel in slurry and particle-laden atmospheres.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC elements demonstrate service lives several times much longer than standard choices.
Its reduced density (~ 3.1 g/cm TWO) additional contributes to put on resistance by decreasing inertial pressures in high-speed rotating components.
2.2 Thermal Conductivity and Stability
One of SiC’s most distinguishing functions is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline kinds, and approximately 490 W/(m · K) for single-crystal 4H-SiC– surpassing most steels except copper and light weight aluminum.
This home makes it possible for effective warmth dissipation in high-power digital substratums, brake discs, and heat exchanger parts.
Coupled with low thermal growth, SiC displays superior thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high values suggest strength to rapid temperature level changes.
As an example, SiC crucibles can be warmed from area temperature level to 1400 ° C in mins without fracturing, a task unattainable for alumina or zirconia in comparable conditions.
Furthermore, SiC maintains strength up to 1400 ° C in inert ambiences, making it ideal for furnace components, kiln furniture, and aerospace components revealed to severe thermal cycles.
3. Chemical Inertness and Deterioration Resistance
3.1 Habits in Oxidizing and Minimizing Environments
At temperatures below 800 ° C, SiC is highly stable in both oxidizing and lowering atmospheres.
Above 800 ° C in air, a safety silica (SiO TWO) layer forms on the surface via oxidation (SiC + 3/2 O ₂ → SiO TWO + CARBON MONOXIDE), which passivates the material and slows further degradation.
However, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)₄, leading to sped up recession– an important factor to consider in turbine and burning applications.
In reducing ambiences or inert gases, SiC continues to be secure up to its decay temperature level (~ 2700 ° C), with no phase adjustments or toughness loss.
This security makes it appropriate for molten steel handling, such as light weight aluminum or zinc crucibles, where it resists wetting and chemical attack much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is essentially inert to all acids other than hydrofluoric acid (HF) and strong oxidizing acid blends (e.g., HF– HNO ₃).
It reveals superb resistance to alkalis approximately 800 ° C, though long term exposure to thaw NaOH or KOH can cause surface etching through development of soluble silicates.
In molten salt environments– such as those in concentrated solar power (CSP) or nuclear reactors– SiC demonstrates remarkable deterioration resistance contrasted to nickel-based superalloys.
This chemical robustness underpins its usage in chemical process tools, consisting of valves, linings, and warm exchanger tubes managing hostile media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Emerging Frontiers
4.1 Established Makes Use Of in Power, Protection, and Manufacturing
Silicon carbide ceramics are essential to various high-value commercial systems.
In the energy market, they function as wear-resistant liners in coal gasifiers, components in nuclear gas cladding (SiC/SiC compounds), and substratums for high-temperature solid oxide gas cells (SOFCs).
Protection applications include ballistic shield plates, where SiC’s high hardness-to-density ratio provides exceptional security versus high-velocity projectiles compared to alumina or boron carbide at reduced cost.
In production, SiC is made use of for precision bearings, semiconductor wafer taking care of components, and abrasive blasting nozzles as a result of its dimensional stability and pureness.
Its use in electrical automobile (EV) inverters as a semiconductor substratum is quickly expanding, driven by efficiency gains from wide-bandgap electronics.
4.2 Next-Generation Developments and Sustainability
Ongoing research focuses on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which show pseudo-ductile habits, improved sturdiness, and preserved stamina above 1200 ° C– optimal for jet engines and hypersonic lorry leading edges.
Additive manufacturing of SiC through binder jetting or stereolithography is progressing, enabling intricate geometries formerly unattainable via conventional forming methods.
From a sustainability point of view, SiC’s durability minimizes replacement frequency and lifecycle emissions in commercial systems.
Recycling of SiC scrap from wafer slicing or grinding is being created through thermal and chemical healing processes to reclaim high-purity SiC powder.
As markets push toward greater efficiency, electrification, and extreme-environment operation, silicon carbide-based ceramics will remain at the forefront of advanced products engineering, linking the space in between architectural strength and useful convenience.
