Why does silicon nitride play an important duty in chips? Analyze the benefits of silicon nitride contrasted to various other products.
In chip manufacturing, there is a material that plays a vital duty, that is silicon nitride (SiNx). Although it may not obtain the very same attention as other a lot more well-known semiconductor materials such as silicon (Si), gallium arsenide (GaAs) or gallium nitride (GaN), its significance is unquestionable. A lot of chips will use this material.

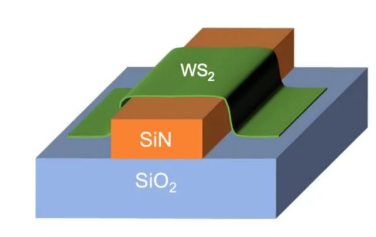

(Application of silicon nitride in chips)
1. Why is it SiNx?
Mindful good friends have noticed that I made use of SiNx when creating the chemical formula of silicon nitride. Friends that have actually examined senior high school chemistry ought to know that N is the 5th primary team aspect. Rationally, the valence ought to be -3, while the chemical valence of silicon is +4. The chemical formula of silicon nitride must be Si3N4. Exactly how can it be SiNx?
Initially, let’s discuss the multivalent state of nitrogen: nitrogen has several valence states, generally due to the fact that it has 5 valence electrons, and nitrogen atoms can share these electrons in different methods. Nitrogen can form various valence states, which primarily depend on the number of electrons it shares with various other aspects.
For nitrogen, its most stable valence state is -3, such as in ammonia (NH3) and gallium nitride (GaN). Nonetheless, nitrogen can additionally create a positive valence state by losing electrons, such as the +5 valence state in nitric acid (HNO3). Furthermore, nitrogen can likewise create a valence state in between -3 and +5, such as the +3 valence state in nitrous acid (HNO2) or the +1 and +2 valence states in some natural compounds.
Secondly, allow’s speak about silicon nitride:
In the semiconductor sector, silicon nitride used in different applications is typically non-uniform, normally stood for by SiNx. SiNx is an amorphous material whose properties rely on the proportion of nitrogen to silicon, that is, the worth of x. When the worth of x modifications, the physical and chemical properties of silicon nitride will certainly likewise change. Silicon nitride does come in lots of kinds, consisting of Si3N4, Si2N2, WRONG, etc

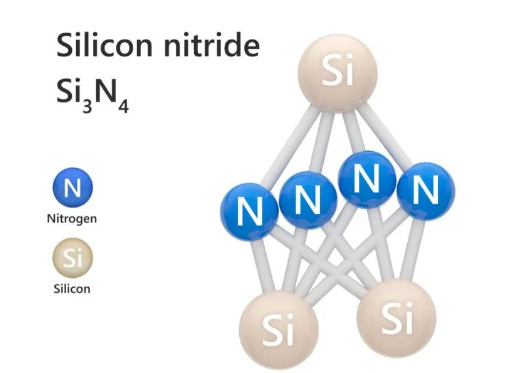

( structure of Si3N4)
Si3N4 is a crystalline material, which indicates that its silicon and nitrogen proportion is repaired. When the value of x amounts to 4/3, SiNx is equal to Si3N4. Nevertheless, in sensible applications, SiNx is often non-uniform, and its silicon and nitrogen proportion can be managed by altering the specifications of the PVD or CVD procedure.
2. What is the function of SiNx in chip production?
Silicon nitride has excellent insulation homes, and its resistivity can be as high as 10 ^ 14 Ω · cm, far exceeding some typical shielding materials such as silicon oxide (SiO2). Its reduced dielectric consistent makes it a perfect seclusion layer in microwave and RF applications. The silicon nitride layer also plays a role in blocking the diffusion of contaminations in the chip. It can stop dopants such as boron and phosphorus from altering device attributes with diffusion. On top of that, it can also prevent the diffusion of metal ions to avoid faults such as short circuits.
The superb thermal stability of silicon nitride is identified by its special chemical properties and crystal framework. It can remain steady in a high-temperature setting without chemical disintegration or physical shape changes like various other materials. That’s because in the crystal structure of silicon nitride, each silicon atom is integrated with 4 nitrogen atoms in the form of a tetrahedron, and each nitrogen atom is also incorporated with 4 silicon atoms in the type of a tetrahedron. This structure makes the crystal latticework of silicon nitride very secure and hard to deform. Consequently, it is utilized as a gate-insulating layer when making high electron flexibility transistors (HEMTs).

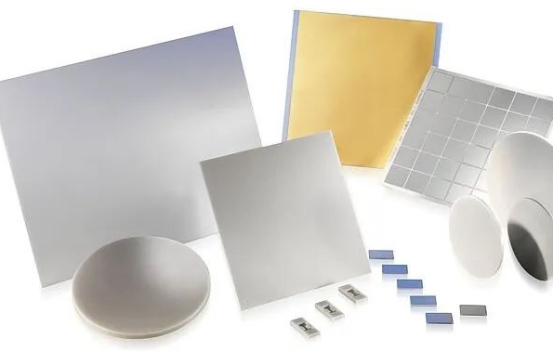

( role of SiNx in chip manufacturing)
3. What are the advantages of SiNx over SiO2?
Much better thermal security, more challenging firmness, and more difficult to etch.
