1. Chemical and Structural Fundamentals of Boron Carbide
1.1 Crystallography and Stoichiometric Variability

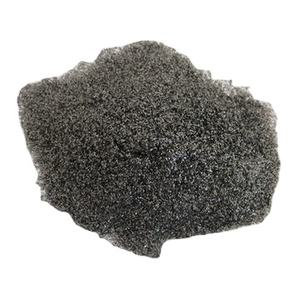

(Boron Carbide Podwer)
Boron carbide (B ₄ C) is a non-metallic ceramic substance renowned for its phenomenal firmness, thermal security, and neutron absorption capability, positioning it amongst the hardest known products– exceeded only by cubic boron nitride and diamond.
Its crystal framework is based on a rhombohedral latticework composed of 12-atom icosahedra (mainly B ₁₂ or B ₁₁ C) interconnected by linear C-B-C or C-B-B chains, forming a three-dimensional covalent network that conveys remarkable mechanical stamina.
Unlike numerous ceramics with repaired stoichiometry, boron carbide exhibits a vast array of compositional versatility, typically ranging from B ₄ C to B ₁₀. FOUR C, as a result of the replacement of carbon atoms within the icosahedra and architectural chains.
This variability influences essential properties such as hardness, electrical conductivity, and thermal neutron capture cross-section, enabling building tuning based upon synthesis conditions and intended application.
The presence of inherent problems and disorder in the atomic setup likewise adds to its special mechanical habits, consisting of a phenomenon referred to as “amorphization under anxiety” at high pressures, which can restrict performance in severe effect scenarios.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is mainly generated via high-temperature carbothermal reduction of boron oxide (B TWO O THREE) with carbon sources such as oil coke or graphite in electrical arc furnaces at temperature levels in between 1800 ° C and 2300 ° C.
The response continues as: B ₂ O THREE + 7C → 2B FOUR C + 6CO, generating rugged crystalline powder that needs succeeding milling and filtration to achieve fine, submicron or nanoscale fragments suitable for sophisticated applications.
Alternative methods such as laser-assisted chemical vapor deposition (CVD), sol-gel handling, and mechanochemical synthesis offer routes to higher pureness and controlled bit dimension circulation, though they are usually restricted by scalability and cost.
Powder characteristics– consisting of bit dimension, form, jumble state, and surface area chemistry– are critical parameters that influence sinterability, packaging density, and final part efficiency.
For example, nanoscale boron carbide powders show improved sintering kinetics because of high surface area power, enabling densification at lower temperature levels, yet are susceptible to oxidation and need safety atmospheres throughout handling and handling.
Surface area functionalization and covering with carbon or silicon-based layers are significantly utilized to improve dispersibility and inhibit grain development throughout debt consolidation.

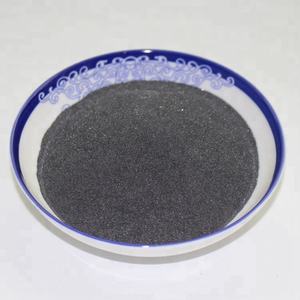

( Boron Carbide Podwer)
2. Mechanical Properties and Ballistic Efficiency Mechanisms
2.1 Firmness, Crack Strength, and Put On Resistance
Boron carbide powder is the precursor to among one of the most efficient light-weight shield products offered, owing to its Vickers solidity of approximately 30– 35 Grade point average, which allows it to erode and blunt inbound projectiles such as bullets and shrapnel.
When sintered into thick ceramic floor tiles or integrated right into composite armor systems, boron carbide exceeds steel and alumina on a weight-for-weight basis, making it optimal for employees defense, automobile armor, and aerospace securing.
Nonetheless, despite its high firmness, boron carbide has reasonably low fracture strength (2.5– 3.5 MPa · m 1ST / ²), providing it vulnerable to fracturing under local influence or duplicated loading.
This brittleness is aggravated at high pressure rates, where dynamic failing mechanisms such as shear banding and stress-induced amorphization can bring about tragic loss of architectural honesty.
Recurring research focuses on microstructural design– such as presenting second stages (e.g., silicon carbide or carbon nanotubes), creating functionally graded composites, or designing hierarchical designs– to reduce these restrictions.
2.2 Ballistic Power Dissipation and Multi-Hit Ability
In personal and car shield systems, boron carbide floor tiles are commonly backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that absorb recurring kinetic energy and contain fragmentation.
Upon influence, the ceramic layer fractures in a regulated way, dissipating energy via devices consisting of particle fragmentation, intergranular cracking, and stage improvement.
The great grain framework derived from high-purity, nanoscale boron carbide powder improves these power absorption procedures by boosting the thickness of grain boundaries that impede fracture breeding.
Current improvements in powder handling have caused the advancement of boron carbide-based ceramic-metal compounds (cermets) and nano-laminated structures that improve multi-hit resistance– a vital need for military and law enforcement applications.
These crafted products preserve protective efficiency also after preliminary effect, dealing with an essential restriction of monolithic ceramic armor.
3. Neutron Absorption and Nuclear Design Applications
3.1 Communication with Thermal and Rapid Neutrons
Beyond mechanical applications, boron carbide powder plays an essential role in nuclear technology as a result of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When incorporated into control poles, securing products, or neutron detectors, boron carbide successfully manages fission responses by capturing neutrons and going through the ¹⁰ B( n, α) seven Li nuclear response, creating alpha particles and lithium ions that are quickly contained.
This home makes it crucial in pressurized water reactors (PWRs), boiling water activators (BWRs), and study reactors, where accurate neutron flux control is vital for secure procedure.
The powder is typically fabricated into pellets, coatings, or distributed within metal or ceramic matrices to develop composite absorbers with tailored thermal and mechanical residential or commercial properties.
3.2 Security Under Irradiation and Long-Term Performance
An important benefit of boron carbide in nuclear environments is its high thermal stability and radiation resistance as much as temperatures exceeding 1000 ° C.
However, extended neutron irradiation can lead to helium gas build-up from the (n, α) reaction, causing swelling, microcracking, and destruction of mechanical stability– a sensation referred to as “helium embrittlement.”
To reduce this, researchers are developing drugged boron carbide solutions (e.g., with silicon or titanium) and composite designs that fit gas release and maintain dimensional security over extended life span.
Additionally, isotopic enrichment of ¹⁰ B enhances neutron capture performance while minimizing the complete material quantity called for, improving reactor layout flexibility.
4. Emerging and Advanced Technological Integrations
4.1 Additive Manufacturing and Functionally Graded Elements
Current development in ceramic additive manufacturing has made it possible for the 3D printing of complicated boron carbide parts using methods such as binder jetting and stereolithography.
In these procedures, great boron carbide powder is precisely bound layer by layer, adhered to by debinding and high-temperature sintering to achieve near-full density.
This capability permits the fabrication of tailored neutron securing geometries, impact-resistant latticework structures, and multi-material systems where boron carbide is integrated with steels or polymers in functionally graded designs.
Such designs maximize efficiency by integrating solidity, strength, and weight effectiveness in a single part, opening up brand-new frontiers in defense, aerospace, and nuclear design.
4.2 High-Temperature and Wear-Resistant Commercial Applications
Past defense and nuclear industries, boron carbide powder is utilized in abrasive waterjet reducing nozzles, sandblasting linings, and wear-resistant finishes as a result of its extreme firmness and chemical inertness.
It outperforms tungsten carbide and alumina in abrasive settings, particularly when revealed to silica sand or other hard particulates.
In metallurgy, it acts as a wear-resistant liner for receptacles, chutes, and pumps managing unpleasant slurries.
Its reduced thickness (~ 2.52 g/cm SIX) additional improves its charm in mobile and weight-sensitive industrial tools.
As powder high quality improves and handling innovations development, boron carbide is poised to expand into next-generation applications including thermoelectric products, semiconductor neutron detectors, and space-based radiation protecting.
Finally, boron carbide powder stands for a cornerstone material in extreme-environment design, incorporating ultra-high firmness, neutron absorption, and thermal resilience in a solitary, versatile ceramic system.
Its role in securing lives, making it possible for nuclear energy, and progressing commercial performance underscores its critical value in modern technology.
With proceeded technology in powder synthesis, microstructural style, and manufacturing integration, boron carbide will certainly stay at the leading edge of sophisticated materials growth for years to come.
