1. Material Qualities and Architectural Design
1.1 Make-up and Crystalline Phases of Alumina

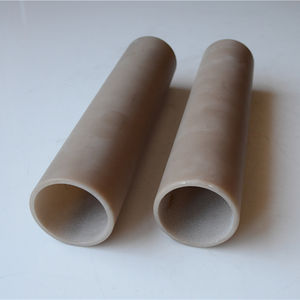

( Alumina Ceramic Tubes)
Alumina (Al ₂ O THREE) ceramic tubes are primarily made from high-purity aluminum oxide, with pureness degrees commonly varying from 90% to 99.8%, relying on the desired application.
The dominant crystalline phase in fully dense, high-temperature sintered tubes is α-alumina (corundum), which exhibits a trigonal crystal structure and outstanding thermodynamic stability.
This phase change from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina takes place above 1100 ° C and leads to a thick, interlocking microstructure that gives exceptional mechanical toughness and chemical resistance.
Higher pureness qualities (≥ 99.5%) optimize solidity, wear resistance, and dielectric efficiency, while lower-purity formulas might integrate additional phases like mullite or glassy grain boundary phases to decrease cost or dressmaker thermal development.
The ability to manage grain dimension, porosity, and phase make-up during handling enables engineers to adjust alumina tubes for specific functional demands across diverse industrial domains.
1.2 Mechanical, Thermal, and Electric Characteristic
Alumina ceramic tubes exhibit a distinct mix of physical residential properties that make them essential sought after engineering settings.
With a Vickers firmness surpassing 1500 HV, they are extremely immune to abrasion and disintegration, surpassing most steels and polymers in wear-prone systems.
Their compressive toughness can reach 2000 MPa, enabling structural use under high mechanical tons, while flexural stamina usually varies from 300 to 500 MPa, depending upon density and surface area finish.
Thermally, alumina maintains security up to 1700 ° C in oxidizing ambiences, with a reduced coefficient of thermal expansion (~ 8 ppm/K), adding to outstanding thermal shock resistance when appropriately developed.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate compared to steels or aluminum nitride, it is sufficient for several high-temperature applications where electrical insulation and architectural integrity are focused on.
Electrically, alumina is an exceptional insulator with volume resistivity > 10 ¹⁴ Ω · centimeters and high dielectric stamina (> 15 kV/mm), making it excellent for electric feedthroughs, sensing unit real estates, and high-voltage insulation.

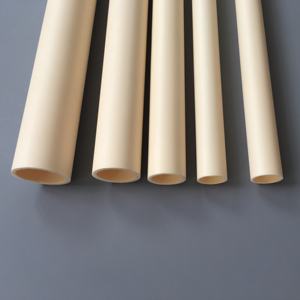

( Alumina Ceramic Tubes)
2. Manufacturing Processes and Dimensional Control
2.1 Forming and Developing Techniques
The production of alumina ceramic tubes includes advanced developing methods customized to achieve specific dimensions, wall surface density harmony, and surface area quality.
Usual methods consist of extrusion, isostatic pressing, and slide spreading, each matched to various dimension varieties and performance demands.
Extrusion is commonly used for long, straight tubes with consistent cross-sections, where a plasticized alumina paste is required through a die and cut to size before drying out and sintering.
For high-precision or thin-walled tubes, cool isostatic pushing (CIP) applies consistent stress from all instructions to small environment-friendly bodies, minimizing distortion and enhancing density homogeneity.
Slide casting, entailing the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold and mildew, is excellent for complex or large-diameter geometries with variable wall thickness.
After creating, tubes undertake mindful drying out to prevent cracking, adhered to by binder fatigue and high-temperature sintering (1500– 1650 ° C )to attain full densification and dimensional stability.
2.2 Ending Up and Quality Control
Post-sintering operations such as centerless grinding, splashing, and brightening are utilized to accomplish tight tolerances, smooth surface coatings, and precise internal and outer sizes.
Tolerances as tight as ± 0.01 mm are achievable for important applications in semiconductor processing or analytical instrumentation.
Surface roughness can be lowered to Ra < 0.1 µm, minimizing fragment trapping and boosting compatibility with ultra-high vacuum (UHV) or cleanroom settings.
Non-destructive testing methods– consisting of ultrasonic inspection, X-ray radiography, and dye penetrant testing– make certain architectural integrity and lack of cracks or voids.
Dimensional assessment utilizing coordinate measuring equipments (CMM) or laser scanning confirms compliance with style specs, specifically for customized or high-volume production runs.
3. Useful Efficiency in Harsh Environments
3.1 Resistance to Thermal and Chemical Destruction
Among the most engaging advantages of alumina ceramic tubes is their ability to withstand severe thermal and chemical problems where metals and polymers fail.
They stay dimensionally secure and mechanically durable in continual solution at temperature levels over 1500 ° C, making them appropriate for heating system linings, thermocouple defense sheaths, and glowing heating system tubes.
Their inertness to molten steels (e.g., light weight aluminum, zinc, and non-ferrous alloys), liquified salts, and numerous acids (other than hydrofluoric and warm phosphoric acid) allows usage in metallurgical and chemical processing equipment.
In oxidizing and reducing environments, alumina does not deteriorate or catalyze undesirable reactions, preserving procedure purity in semiconductor and glass production.
This chemical inertness additionally prevents contamination in high-purity liquid managing systems, including those made use of in pharmaceutical and food handling industries.
3.2 Electrical Insulation and Plasma Resistance
In electric and plasma environments, alumina tubes serve as protecting obstacles that keep circuit honesty under high voltage and elevated temperature level.
They are utilized in high-intensity discharge (HID) lights, where they consist of ionized gases at temperatures exceeding 1000 ° C while standing up to electric possibilities of a number of kilovolts.
In plasma etching and deposition systems, alumina tubes function as dielectric windows or gas circulation elements, standing up to ion bombardment and thermal cycling without splitting or outgassing.
Their low dielectric loss and high arc resistance stop electric tracking and malfunction, making certain long service life in switchgear and power transmission parts.
These properties are vital in maintaining procedure stability and tools reliability in sophisticated manufacturing and power systems.
4. Industrial and Emerging Applications
4.1 High-Temperature and Commercial Handling Equipments
Alumina ceramic tubes are integral to a large range of commercial processes that demand resilience under severe conditions.
In thermal processing, they function as protective sheaths for thermocouples and heating elements in kilns, heating systems, and warm therapy devices, protecting delicate elements from corrosive environments and mechanical wear.
In liquid handling, they move aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock permits rapid heating and cooling cycles without failing, a vital benefit in cyclic commercial procedures.
In glass production, alumina tubes lead liquified glass circulations and support creating tools, standing up to erosion from viscous, high-temperature thaws.
4.2 Advanced Technologies and Future Integration
Beyond typical industrial uses, alumina tubes are finding brand-new duties in cutting-edge modern technologies.
In semiconductor manufacture, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) reactors and ion implantation systems, where fragment generation and metal contamination should be decreased.
In medical devices, biocompatible alumina tubes work as insulating components in medical devices, oral implants, and analysis sensing units.
Research is checking out functionalized alumina tubes with ingrained sensing units or conductive traces for smart structural monitoring in aerospace and power systems.
Additive manufacturing (3D printing) of alumina is becoming an approach to create complicated tube geometries with internal channels or graded compositions, making it possible for next-generation warmth exchangers and microreactors.
As industries press towards greater efficiency, cleaner procedures, and greater integrity, alumina ceramic tubes remain to progress as enabling elements in the facilities of contemporary innovation.
In recap, alumina ceramic tubes stand for a mature yet dynamically progressing course of engineered materials, combining extraordinary thermal, mechanical, and electric efficiency in a solitary inorganic channel.
Their versatility throughout severe atmospheres ensures their ongoing significance in both developed industrial systems and emerging high-tech applications.
